The Phantom 1XL delivers the latest in high-end LED tech. The commercial-grade fanless Mean Well 100-watt dimmable driver not only gives you reliability and efficiency, but full control of your light intensity with dimmability between 10-100%.

The overbuilt Optic XL anodized black, pin heatsink ensures the lowest running temperatures for low BTU output, maximum light production, and the longest lifespan.

The integration of 8 CREE XPE Deep Reds & 4 CREE XPE Royal Blue LEDs enhances the 3500K full-spectrum white light base, giving you a spectrum that your canopy can absorb easily, even at higher intensities.

The Phantom 1XL Dimmable features the latest and most efficient Samsung white light LED tech in the marketplace today - the LM301H top-bin array. What can Phantom Tech do for your garden?

Phantom 1XL Dimmable Components

LED: 372 Total LEDs

White LEDs: 360 x Top Bin Samsung LM301H

Bloom Enhancers: 8 x CREE XPE Deep Reds, 4 x CREE XPE Royal Blue LEDs

Lens: Optional 120-degree wide beam acrylic lens

Driver: Meanwell Dimmable HBG Series

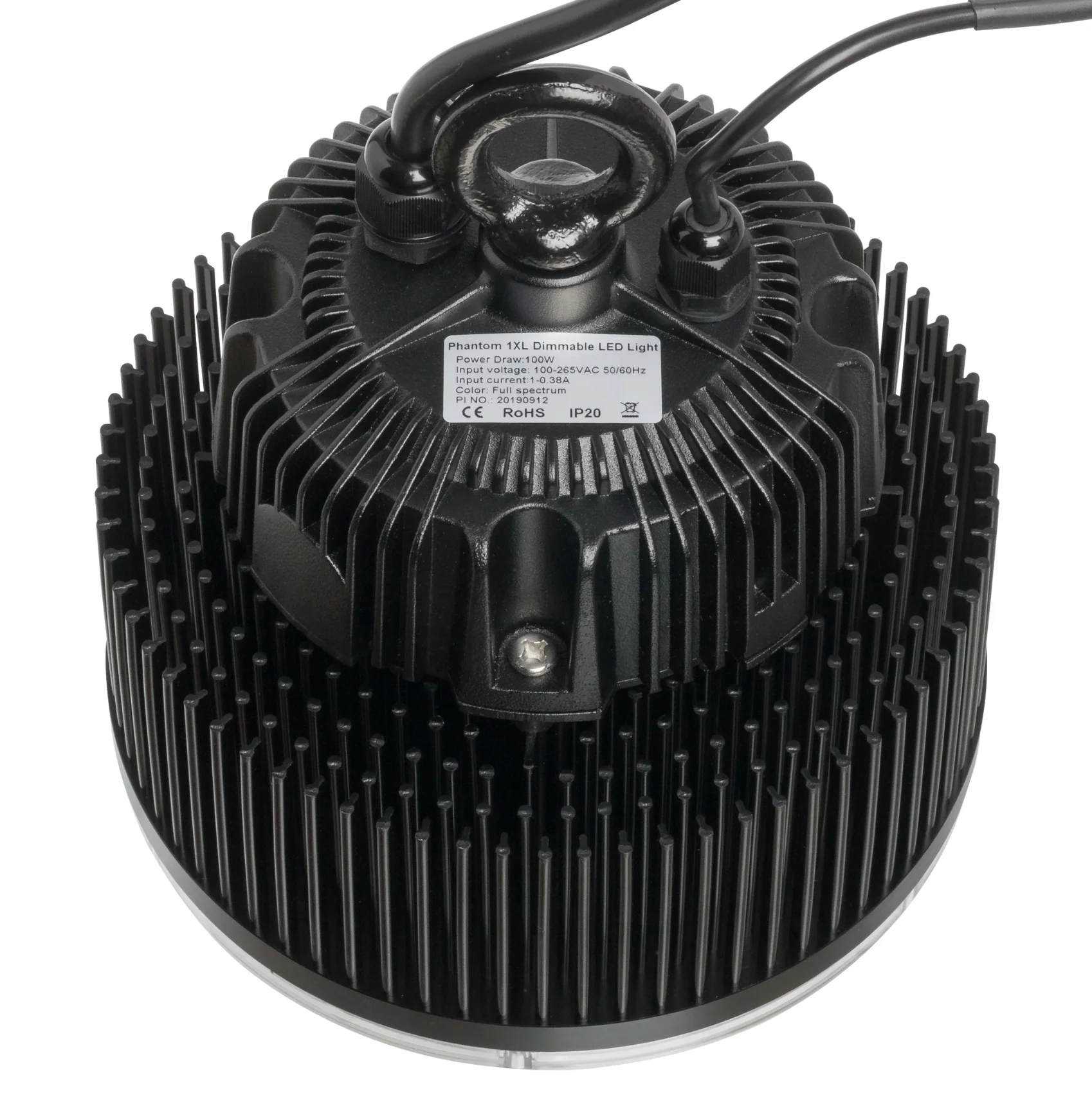

Thermal management: Passive cooling from an overbuilt anodized black pin heat sink (no fans)

Spectrum

PAR

Phantom 1XL in 2x2 area (NO LENS) tested with Apogee MQ-500 meter

8" Hanging Height PPFD: 803

803.31 PPFD x 0.36 m2 (2x2 area) = 289.19

289.19 / 104 watts = 2.78 PAR Efficacy

12" Hanging Height PPFD: 627

18" Hanging Height PPFD: 483

Specs

Actual Power Draw: 100 watts

Spectrum: Full Spectrum White Light + 660nm Deep RED + 450nm Royal Blue

Coverage area (flower):

1 Unit

2' x 2' area (.6m x .6m)

Max 2.5' x 2.5' (.75m x .75m)

4 Units 2 Units

4' x 4' area (1.2m x 1.2m) 2' x 4' area (.6m x .1.2m)

Max 5' x 5' (.75m x .75m) 3' x 3' area (.9m x .9m)

Coverage area (Veg) for 1 unit:

• 2' x 2' area @ 18"
• 3' x 3' area @ 24"

Hanging Height:

• Flower: 8"-18"
• Veg: 18" - 24"
• Seedlings: 24-30" (Dimmed Down @ 50%)

Pro Tips: Wk1-3 @18" - Wk4-6 @14" - Wk7-10 @8"-9"

PAR efficacy: 2.78 umol/j

Average PPFD in 2x2 area: 803 umol/m2/s

Lifetime: 100,000 hours

Driver: Meanwell

Cables: 6-foot attached power cord

Plug: USA, Canada, EU, Commercial, Industrial etc.

(We automatically ship the correct cord for your country)

Dimming: Yes, down to 10% intensity (dimmer included)

Hanger: Comes with adjustable rope ratchet & large carabiner.

Dimensions: 7" x 7" x 8"

Weight: 8 lbs

Recommended for:

• Closet Grows
• Cabinet Grows & Grow Tents
• Supplemental Coverage

Warranty: 10 Years full warranty - Lifetime warranty on Meanwell Driver

Grams per watt: Up to 2.25 g/w

Yield: Up to 225 grams / 7.14 ounces
