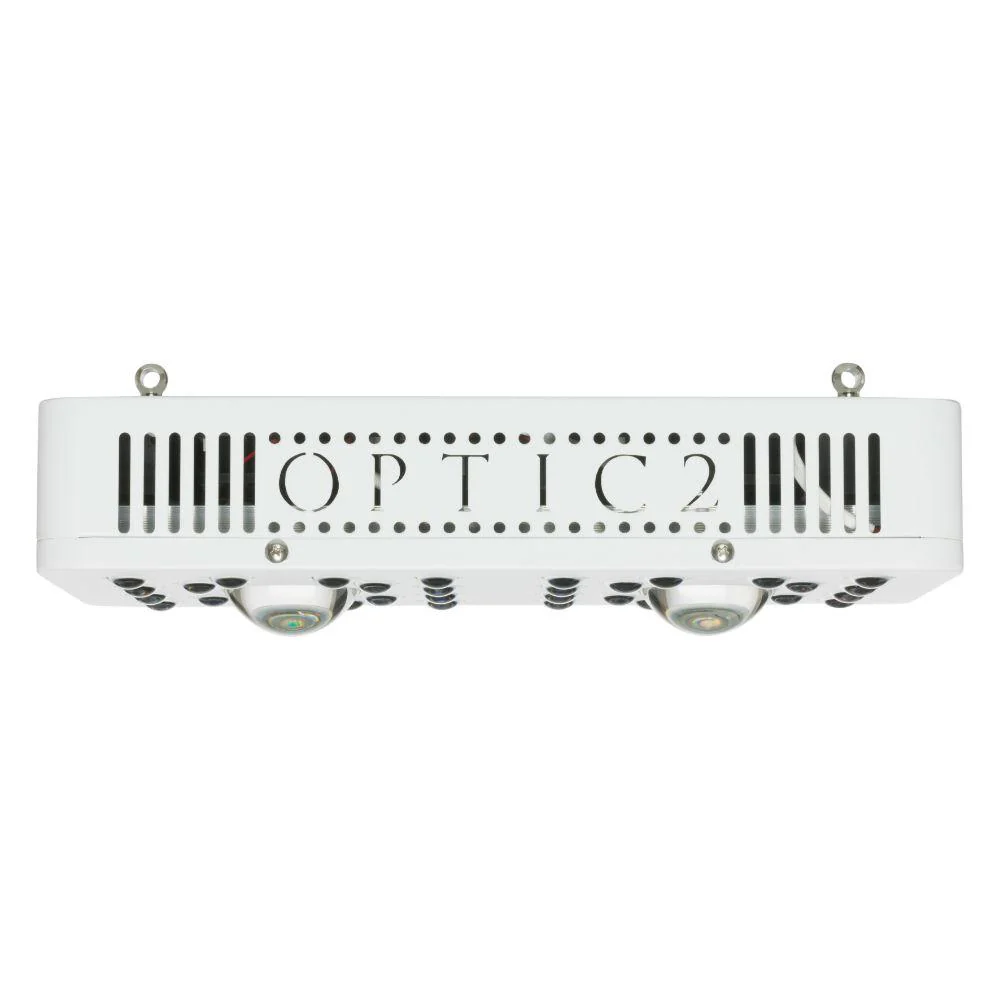

Optic 150W COB Grow Light

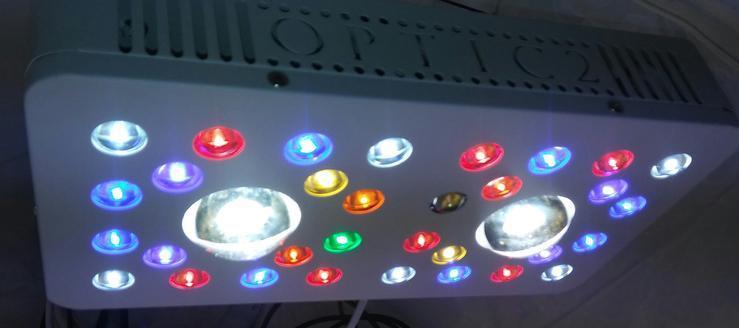

The Optic 2 by Optic LED features white-light technology via two 80-watt CREE CXB2540 chip-on-board arrays. 32 supplemental 5-watt Bridgelux and Epistar diodes surround each COB to further enhance the spectrum and increase intensity. Secondary lenses surround each COB or LED to further increase intensity.

Optic LED's spectrum ranges from 380nm to 780nm, covering the entire PAR spectrum + UV-A and near infrared (far red). The additional green light helps increase photosynthesis deep in the leaves and inside the canopy. Far red light, when combined with red light, has been proven to increase the rate of photosynthesis.

The Optic 2 offers dual grow channels - channel A turns on the COBs and channel B activates the 5-watt arrays. Turn both buttons on for maximum light intensity during flower.

This fixture is ideal for vegging a 3' x 4' area.

Spectrum

Available in 3000K/5000K blend for full cycle or 5000K (for Veg).

5000K COB spectrum w/ both channels on displayed below.

Specs

Model/SKU: Optic 2/op2

Power output: 150 watts

HID equivalent: 400 watts

LEDs:

• 2 x 50-watt CREE CXB 2540 Chip-On-Board (COB) LEDs (5000K)
• 32 x 5-watt supplemental Bridgelux/Epistar LEDs
• Red diodes: Epistar
• Blue and White diodes: Bridgelux

Optics: Secondary lenses

Spectrum: Full-spectrum + near infrared

PAR: 802 umol/m2/s at center of footprint at 18"

Coverage area:

• Veg @ 30" 4' x 4'
• Veg @ 36": 5' x 5'

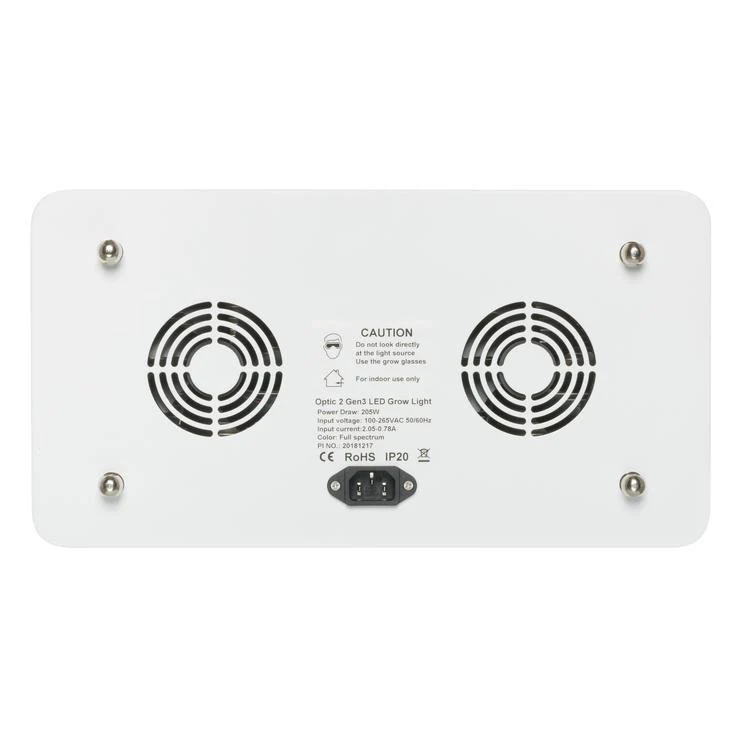

Thermal management: 2 x cooling fans, 20% larger heatsinks than gen2 version

Daisy chain: No

Operating/input voltage: 100v-265v AC; 50Hz-60Hz

Dimensions: 14.8" x 7.8" x 2.75"

Weight: 7.9 lbs

Recommended height above canopy: 24"-36"

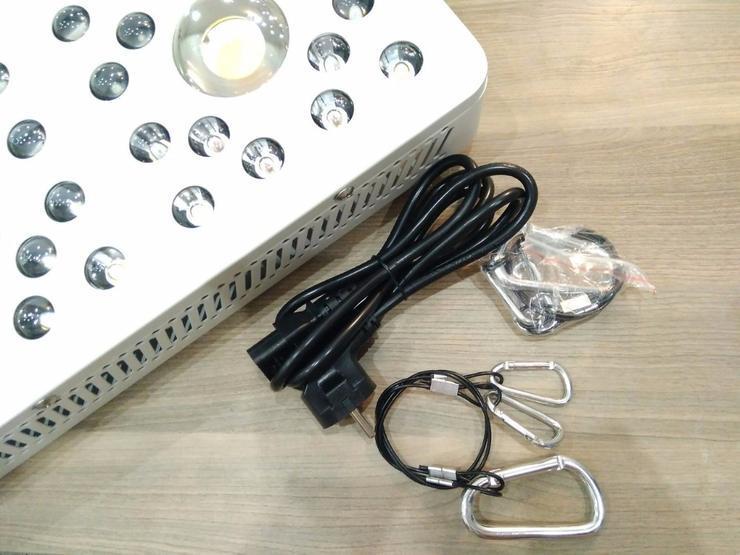

Product includes: LED fixture, 120v power cord, built-in timer, dual channels (COBs or 5W arrays), heavy duty hanging cables, hanging hooks

Additional info: IP20, CE, RoHS

Recommended for:

• Grow tents
• Grow rooms
• Full-cycle growing from seedling to flower
• Soil, hydroponic, aeroponic, or aquaponic systems

Manufacturer's Warranty: 5 years

Optic 205W COB Grow Light

Now with 40% more light output over the Gen2 model!

The Optic 2 by Optic LED features white-light technology via two 80-watt CREE CXB 2540 chip-on-board arrays. 32 supplemental 5-watt Bridgelux and Epistar diodes surround each COB to further enhance the spectrum and increase intensity. Secondary lenses surround each COB or LED to further increase intensity.

Optic LED's spectrum ranges from 380nm to 780nm, covering the entire PAR spectrum + UV-A and near-infrared (far red). The additional green light helps increase photosynthesis deep in the leaves and inside the canopy. Far red light, when combined with red light, has been proven to increase the rate of photosynthesis.

The Optic 2 offers dual grow channels - channel A turns on the COBs and channel B activates the 5-watt arrays. Turn both buttons on for maximum light intensity during flower.

Forget using an external wall timer because the Optic 2 has a 6-stage timer built right into the side of the unit. Set your timer between 10 to 24 hours with a push of a button.

This fixture is ideal for vegging a 3' x 4' area or flowering a 2' x 3' area.

Control Panel

Spectrum

Available in 3000K/5000K blend for full-cycle or 5000K (for Veg).

3000K/5000K version

COBs only / 5-watters only / COBs and 5W

PAR

Light penetration at center of footprint

PPFD @18" (.45m) hanging height in 2'x3' area (.6m x .9m)

Specs

Model/SKU: Optic 2/op2

Power output: 205 watts

HID equivalent: 400 watts

LEDs:

• 2 x 80-watt CREE CXB 2540 Chip-On-Board (COB) LEDs (1 x 3000K, 1 x 5000K)
• 32 x 5-watt supplemental Bridgelux/Epistar LEDs
• Red diodes: Epistar
• Blue and White diodes: Bridgelux

Optics: Secondary lenses

Spectrum: Full-spectrum + near infrared

PAR: 1190 umol/m2/s at center of footprint at 18"

Average PPFD at 18" in a 2'x3': 738 umol/m2/s

Coverage area:

• Veg: 3' x 4'
• Flower: 2' x 3'

Yield: Up to 1.5 grams per watt / 10.98 ounces / 0.68 lbs

Thermal management: 2 x cooling fans, 20% larger heatsinks than gen2 version

Daisy chain: No

Operating/input voltage: 100v-265v AC; 50Hz-60Hz

Dimensions: 14.8" x 7.8" x 2.75"

Weight: 7.9 lbs

Recommended height above canopy:

• Veg: 24"-36"
• Flower: 18"-24"

Product includes: LED fixture, 120v power cord, built-in timer, dual channels (COBs or 5W arrays), heavy duty hanging cables, hanging hooks

Additional info: IP20, CE, RoHS

Recommended for:

• Grow tents
• Grow rooms
• Full-cycle growing from seedling to flower
• Soil, hydroponic, aeroponic, or aquaponic systems

Manufacturer's Warranty: 5 years

Optic 405W COB Grow Light

he Optic 4 by Optic LED features white-light technology via four 80-watt CREE CXB2540 chip-on-board arrays. 64 supplemental 5-watt Bridgelux and Epistar diodes surround each COB to further enhance the spectrum and increase intensity. Secondary lenses surround each COB or LED to further increase intensity.

Optic LED's spectrum ranges from 380nm to 780nm, covering the entire PAR spectrum + UV-A and near infrared (far red). The additional green light helps increase photosynthesis deep in the leaves and inside the canopy. Far red light, when combined with red light, has been proven to increase the rate of photosynthesis.

The Optic 4 offers dual grow channels - channel A turns on the COBs and channel B activates the 5-watt arrays. Turn both buttons on for maximum light intensity during flower.

Forget using an external wall timer because the Optic 4 has a 6-stage timer built right into the side of the unit. Set your timer between 10 to 24 hours with a push of a button.

This fixture is ideal for vegging a 4' x 4' area or flowering a 3' x 3' area.

Control Panel

Spectrum

Available in a 3000K or 3000K/5000K COB blend.

What spectrum should I choose? 3000K is best for flowering and higher yields, 3000K/5000K is best for increased flower quality. Both work great for full-cycle grows.

3000K version

COBs only / 5-watters only / COBs and 5W

3000K/5000K version

COBs only / 5-watters only / COBs and 5W

PAR

Light penetration at center of footprint

PPFD @18" (.6m) hanging height in 3'x3' area (.9m x .9m)

Specs

Model/SKU: Optic 4/op4

Power output: 405 watts

HID equivalent: 600 watts

LEDs:

• 4 x 80-watt CREE CXB 2540 Chip-On-Board (COB) LEDs
• (3000K or 3000K/5000K blend)
• 64 x 5-watt supplemental Bridgelux/Epistar LEDs
• Red diodes: Epistar
• Blue and White diodes: Bridgelux

Optics: Secondary lenses

Spectrum: Full-spectrum + near infrared

PAR: 1250 umol/m2/s at center of footprint at 24"

Average PPFD at 24": 824 umol/m2/s

Coverage area:

• Veg: 4' x 4'
• Flower: 3' x 3'

Yield: Up to 622.5 grams / 22.23 ounces / 1.38 lbs

Grams/watt: 1.5g

Thermal management: 4 x cooling fans, 20% larger heatsinks than gen2 version

Daisy chain: No

Operating/input voltage: 100v-265v AC; 50Hz-60Hz

Dimensions: 14.8" x 14.8" x 2.75"

Weight: 14.5 lbs

Recommended height above canopy:

• Veg: 24"-36"
• Flower: 24"

Product includes: LED fixture, 120v power cord, built-in timer, dual channels (COBs or 5W arrays), heavy duty hanging cables, hanging hooks

Additional info: IP20, CE, RoHS

Recommended for:

• Grow tents
• Grow rooms
• Full-cycle growing from seedling to flower
• Soil, hydroponic, aeroponic, or aquaponic systems

Manufacturer's Warranty: 5 years

Optic 605W COB Grow Light

Now with 40% more light output over the Gen2 model!

The Optic 6 by Optic LED features white-light technology via six 80-watt CREE CXB2540 chip-on-board arrays. 96 supplemental 5-watt Bridgelux and Epistar diodes surround each COB to further enhance the spectrum and increase intensity. Secondary lenses surround each COB or LED to further increase intensity.

Optic LED's spectrum ranges from 380nm to 780nm, covering the entire PAR spectrum + UV-A and near infrared (far red). The additional green light helps increase photosynthesis deep in the leaves and inside the canopy. Far red light, when combined with red light, has been proven to increase the rate of photosynthesis.

The Optic 6 offers dual grow channels - channel A turns on the COBs and channel B activates the 5-watt arrays. Turn both buttons on for maximum light intensity during flower.

Forget using an external wall timer because the Optic 6 has a 6-stage timer built right into the side of the unit. Set your timer between 10 to 24 hours with a push of a button.

This fixture is ideal for vegging a 4' x 5' area or flowering a 4' x 4' area.

Control Panel

Spectrum

Available in a 3000K or 3000K/5000K COB blend.

What spectrum should I choose? 3000K is best for flowering and higher yields, 3000K/5000K is best for increased flower quality. Both work great for full-cycle grows.

3000K version

COBs only / 5-watters only / COBs and 5W

3000K/5000K version

COBs only / 5-watters only / COBs and 5W

PAR

Light penetration at center of footprint

PPFD @ 24" Hanging Height: 739 umol/m2/s

PPFD @ 30" Hanging Height: 650 umol/m2/s

Specs

Model/SKU: Optic 6/op6

Power output: 605 watts

HID equivalent: 1000 watts

LEDs:

• 6 x 80-watt CREE CXB 2540 Chip-On-Board (COB) LEDs
• (3000K or 3000/5000K blend)
• 96 x 5-watt supplemental Bridgelux/Epistar LEDs
• Red diodes: Epistar
• Blue and White diodes: Bridgelux

Optics: Secondary lenses

Spectrum: Full-spectrum + near infrared

PAR: 1616 umol/m2/s at center of footprint at 24"

Average PPFD at 24": 739 umol/m2/s

Average PPFD at 30": 650 umol/m2/s

Coverage area:

• Veg: 5' x 4'
• Flower: 4' x 4'

Yield: Up to 930 grams / 33.21 ounces / 2.07 lbs

Grams/watt: 1.5g

Thermal management: 6 x cooling fans, 20% larger heatsinks than gen2 version

Daisy chain: No

Operating/input voltage: 100v-265v AC; 50Hz-60Hz

Dimensions: 21.8" x 14.8" x 2.75"

Weight: 21.1 lbs

Recommended height above canopy:

• Veg: 24"-36"
• Flower: 24"-30"

Product includes: LED fixture, 120v power cord, built-in timer, dual channels (COBs or 5W arrays), heavy duty hanging cables, hanging hooks

Additional info: IP20, CE, RoHS

Recommended for:

• Grow tents
• Grow rooms
• Full-cycle growing from seedling to flower
• Soil, hydroponic, aeroponic, or aquaponic systems

Manufacturer's Warranty: 5 years
