The Phantom 1 delivers the latest in high-end LED tech. The commercial-grade fanless Mean Well 54-watt driver gives you reliability and efficiency.

The overbuilt Phantom 1 anodized black, pin heatsink ensures the lowest running temperatures for low BTU output, maximum light production, and the longest lifespan.

The integration of 4 CREE XPE Deep Reds & 2 CREE XPE Royal Blue LEDs enhances the 3500K full-spectrum white light base, giving you a spectrum that your canopy can absorb easily, even at higher intensities.

The Phantom 1 features the latest and most efficient Samsung white light LED tech in the marketplace today - the LM301H top-bin array. What can Phantom Tech do for your garden?

Phantom 1 Components

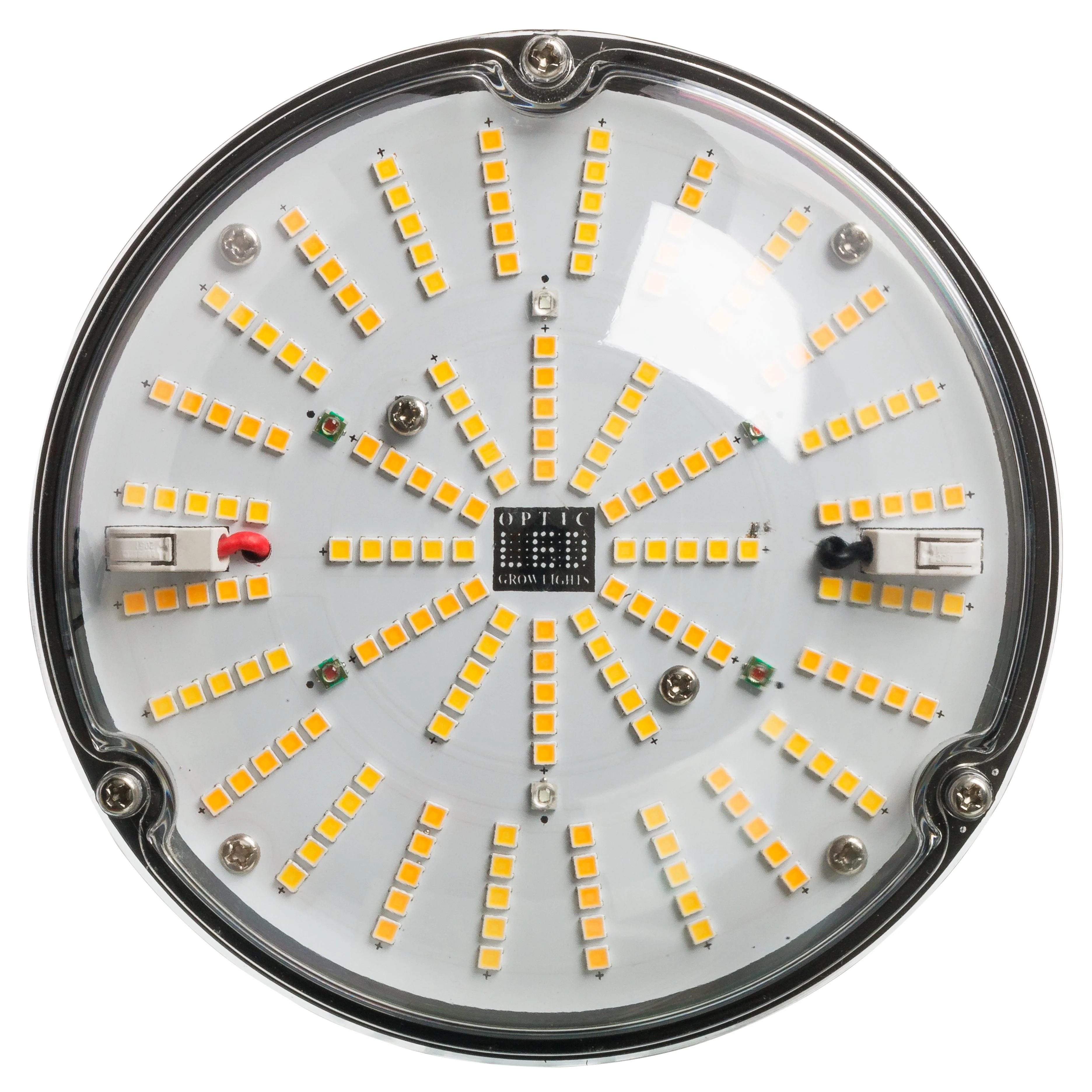

LED: 186 Total LEDs

White LEDs: 180 x Top Bin Samsung LM301H

Bloom Enhancers: 4 x CREE XPE Deep Reds, 2 x CREE XPE Royal Blue LEDs

Lens: Optional 120-degree wide beam acrylic lens

The secondary acrylic lens/cover provides additional protection and a more uniform 120° beam angle. PAR meter testing shows 5% higher PAR values with no acrylic lens.

Driver: Meanwell HBG Series

Thermal management: Passive cooling from an overbuilt anodized black pin heat sink (no fans)

Spectrum

PAR

Phantom 1 in 2x2 area (NO LENS) tested with Apogee MQ-500 meter

6" Hanging Height PPFD: 524.25

8" Hanging Height PPFD: 439.00

10" Hanging Height PPFD: 405.43

12" Hanging Height PPFD: 356.50

Specs

Actual Power Draw: 54 watts

Spectrum: Full Spectrum White Light + 660nm Deep RED + 450nm Royal Blue

Coverage area (flower):

1 Unit

2' x 2' area (.6m x .6m)

2-3 Units

2' x 4' area (.6m x .1.2m)

Coverage area (Veg) for 1 unit:

• 3' x 3' area @ 18"

Hanging Height:

• Flower: 6"-18"
• Veg: 14" - 18"
• Seedlings: 18"

(Pro Tips: Wk1-3 @12" - Wk4-6 @10" - Wk7-10 @6"-8" )

PAR efficacy: 2.92 umol/j

Average PPFD in 2x2 area at 8": 439 umol/m2/s

Lifetime: 100,000 hours

Driver: Meanwell

Cables: 6-foot attached power cord

Plug: USA, Canada, EU, Commercial, etc (we automatically ship the correct cord for your country)

Dimming: No

Hanger: Comes with adjustable rope ratchet hanger

Dimensions: 5" x 5" x 4.5"

Weight: 5 lbs

Recommended for:

• Closet Grows
• Cabinet Grows & Grow Tents
• Supplemental Coverage

Warranty: 10 Years full warranty - Lifetime warranty on Meanwell Driver

Grams per watt: Up to 2.0 g/w

Yield: Up to 225 grams / 7.14 ounces
