The Arize Element® family offers a true one-to-one LED replacement for 400W, 600W and 1000W HPS fixtures. Class-leading efficiency of up to 3.5 µmol/J, universal installation options and tailored light spectrums make the Element the smartest choice for your greenhouse.

Features

• Class-leading efficacy of up to 3.5 µmol/J
• Multiple installation options, including brackets and universal loop cables
• The unique optical design distributes light uniformly for true 1:1 HPS replacement
• PPF of up to 1827 μmol/s

Specs

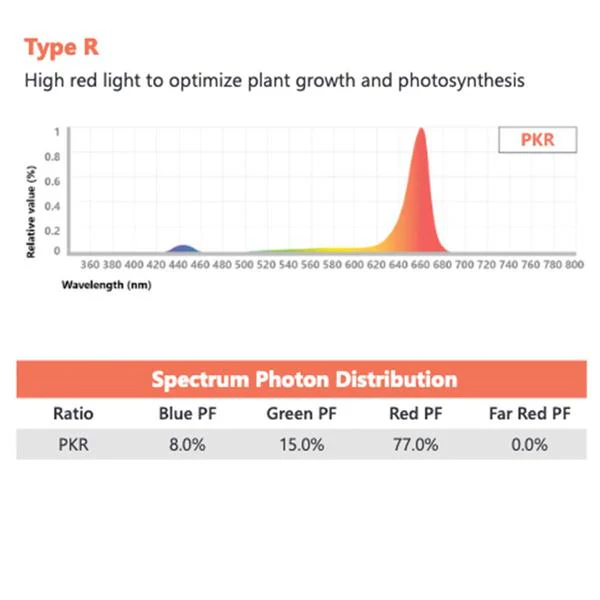

• For bloom phase
• Typical photon flux: 1669 umol/s
• Power: 590W
• Efficacy: 2.8 umol/J
• Dimming range: 0-10V
• Max source current: 450uA
• Dim-to-off: Yes
• Dim off voltage: 0.35-0.65V (typ 0.5V)
• Dim on voltage: 0.55-0.85V (typ 0.7V)
• Dimming output range: 10-100%
• Absolute maximum dimming voltage: 20V
• Maximum fixtures per dimmer: 156
• Power factor: >0.9
• Max remote mount distance: 12'
• Cooling: Passive
• Light distribution: Standard 120° / XW XXX°
• Operating environment: 0°C to 45°C (32°F to 113°F)
• IP rating: IP66
• Lifetime: L90=36,000 hrs
• Certifications: UL E492907, CE, DLC
• Warranty: 5-year system
