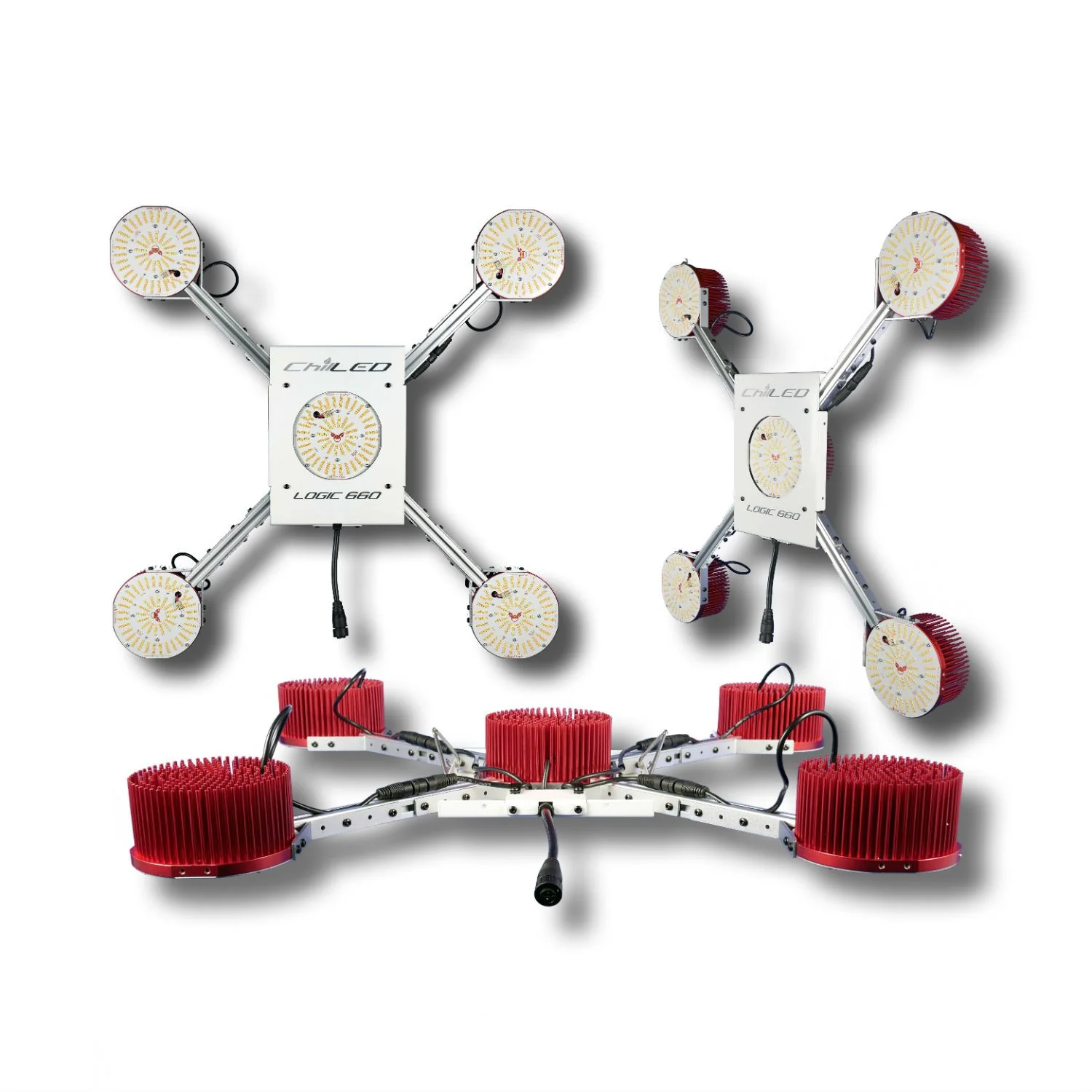

Complete DIY parts kit for easy do it yourself assembly.

Kit includes the popular Logic V3 LED Boards and all other parts needed to assemble a full logic light with max output of 660 watts.

Top Features

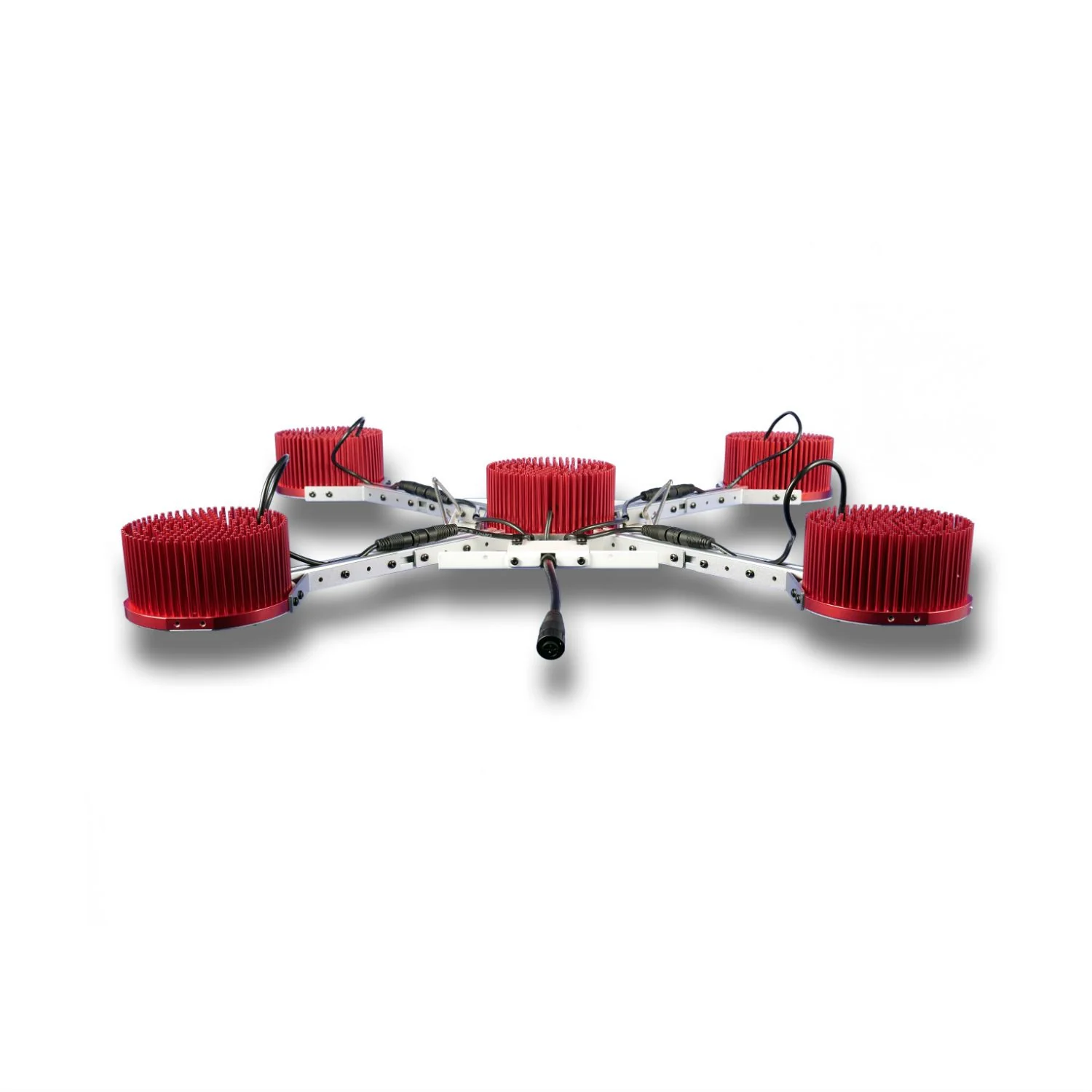

Passive Pin Heatsink Cooling

Thin Profile - Only 3" tall

Made with Popular Logic V3 LED Boards

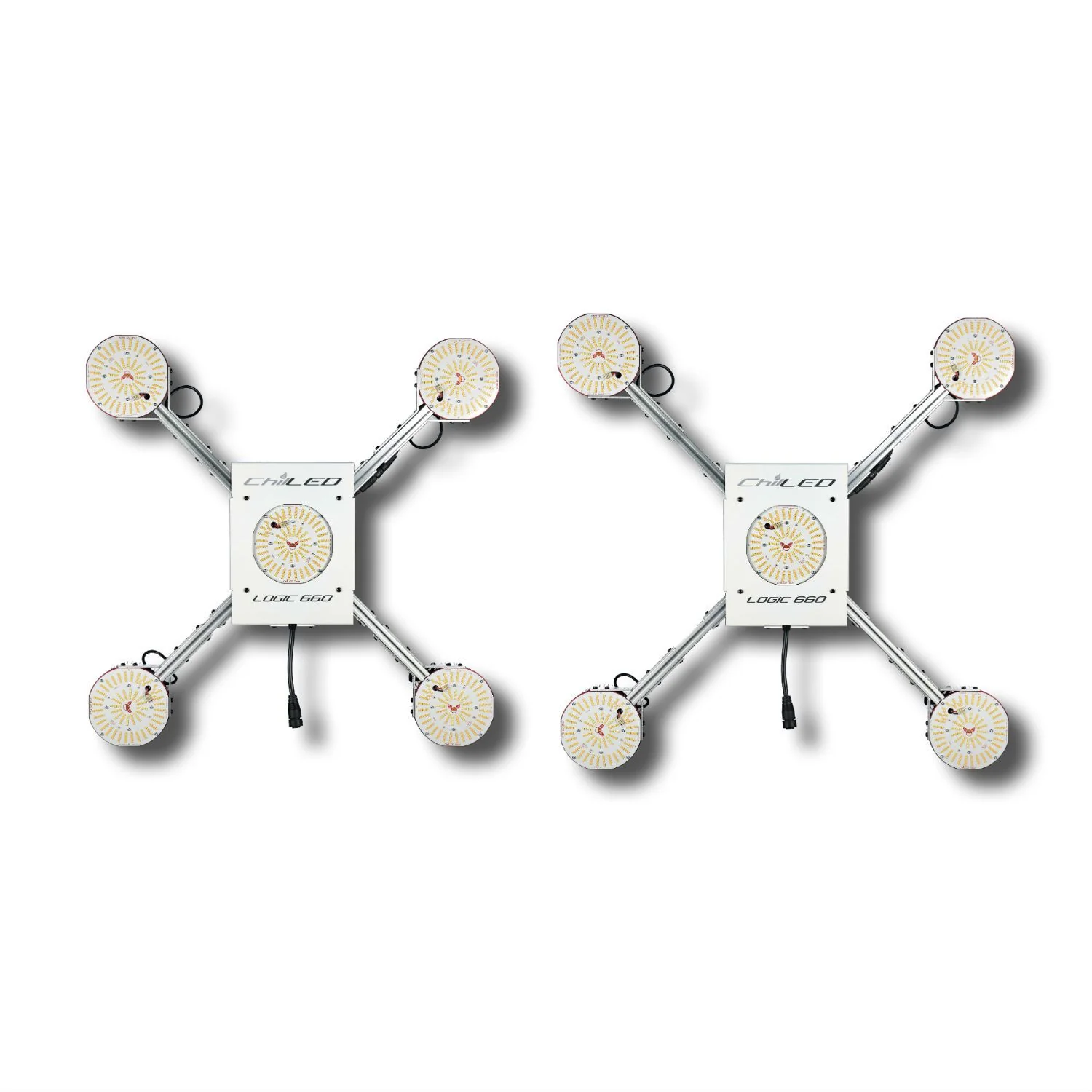

Innovative Telescoping Design (Extend From 4x4 to 5x5 Coverage)

Remote Dimmable Driver Location to Reduce Heat Inside Your Grow Area

Dimmable from 660W to 230W

Full White-Light Spectrum for Seed to Flower Growth

PAR Over a 4'x4' Area

Specs

Wattage draw: 230 - 660 watts (dimmable voltage on driver)

HID equivalent: 1000 watts

LEDs: Samsung 301B + Osram 660nm

Spectrum: 3000K, 5000K, 660nm mix

PPF: 1585 µmol/s

PAR efficacy: 2.7 (dimmed down)- 2.4 umol/j (at full power); efficacy is for a single module only

Coverage area:

• Veg: 6' x 6'
• Flower: 4.5' x 4.5' or 5' x 5'

Mounting height above canopy:

• 4 x 4 Flowering 24"
• 4 x 4 Vegetative 24" - dim to half-power
• 5 x 5 Flowering 36"
• 5 x 5 Vegetative 36" - monitor plant response, dim as needed

Dimming: On-board driver

Thermal management: Passive cooling

Weight of fixture: 12.4 lbs

Weight of driver: 8.5 lbs

Dimensions: 28” x 28” (71cm x 71cm) expandable

Operating/input voltage: 100-277 VAC 50/60Hz

Amperage:

• 5.5A @ 120V
• 2.27A @ 240V

Plug Type: Nema 5-15 (USA), unless otherwise specified above

Product includes:

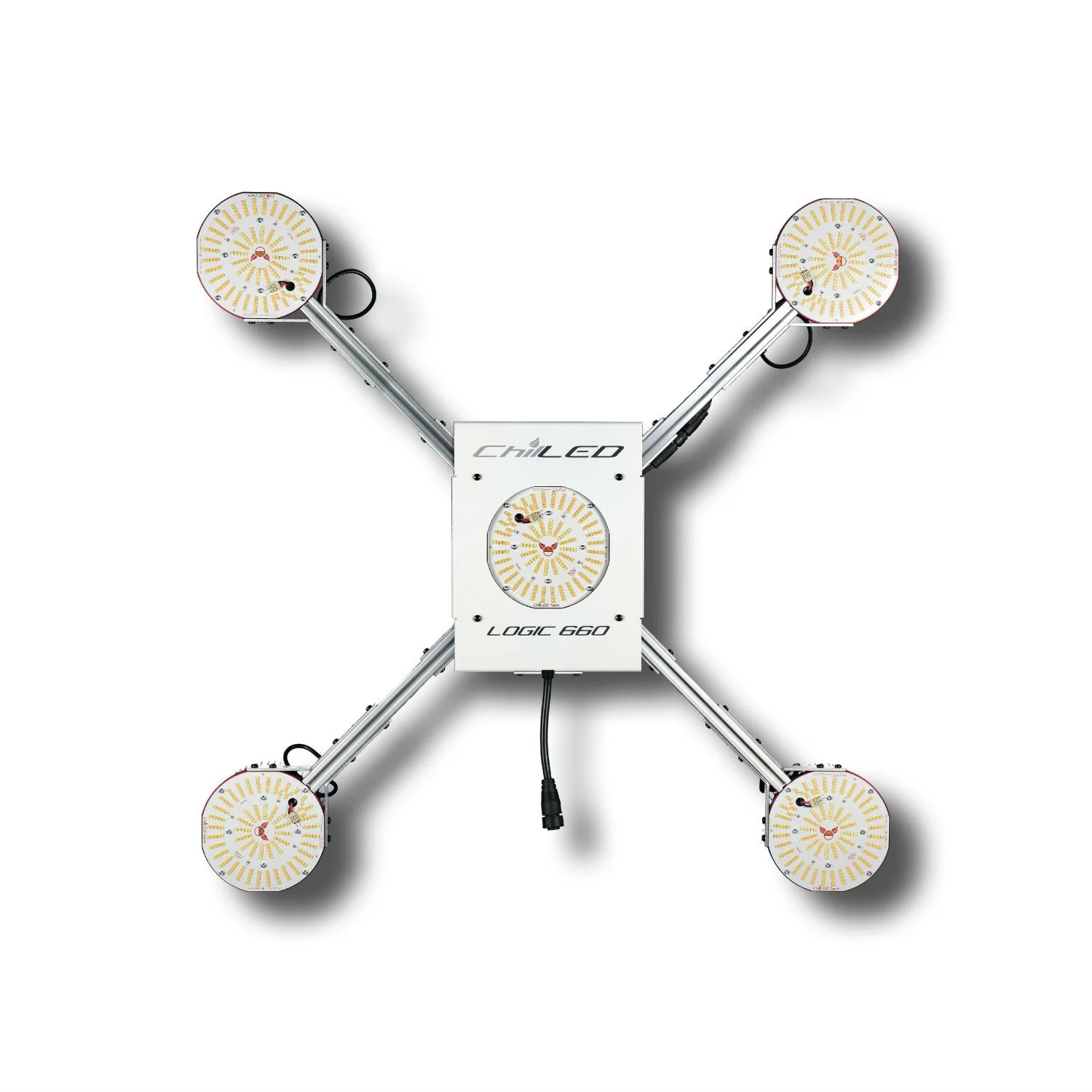

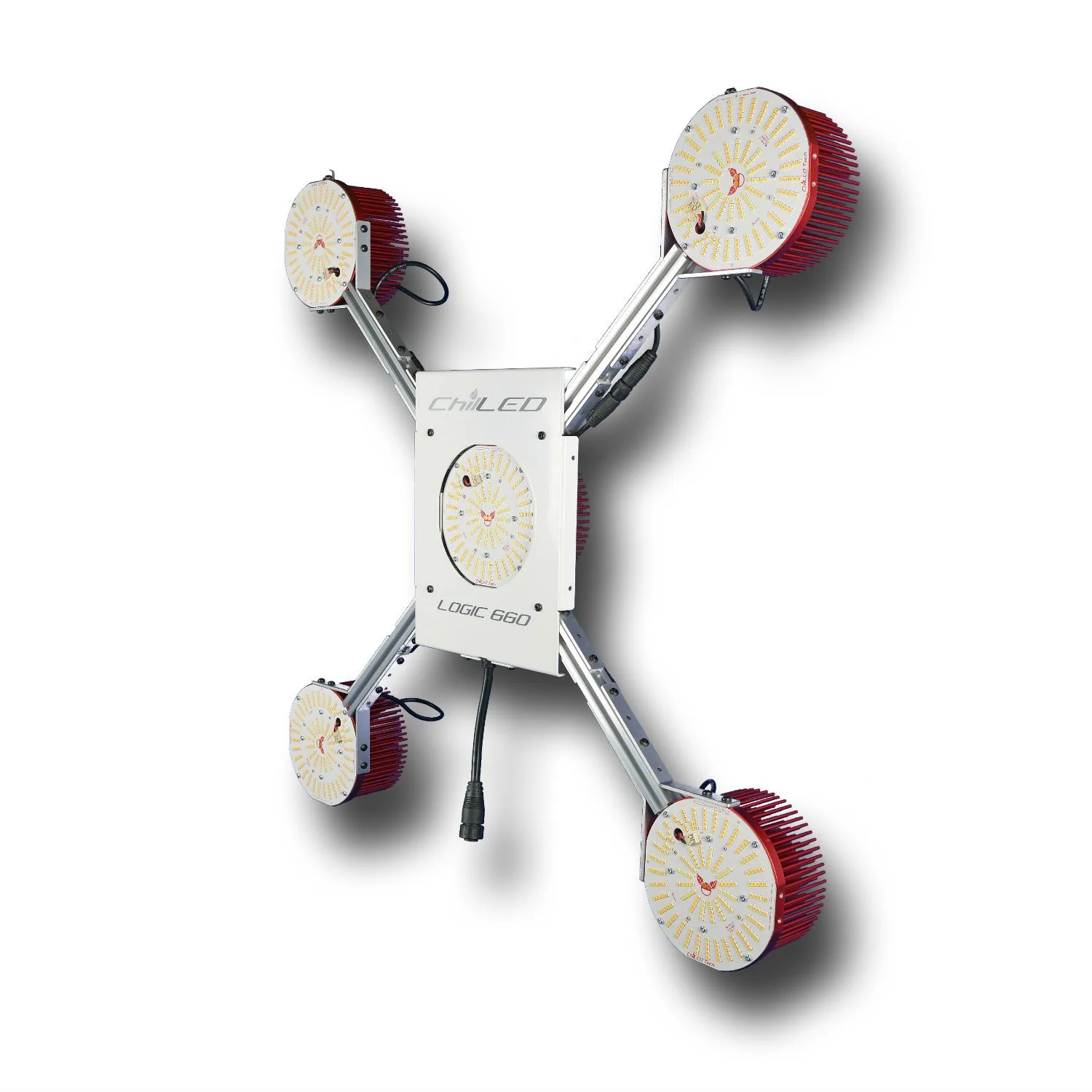

• LOGIC 660 LED fixture

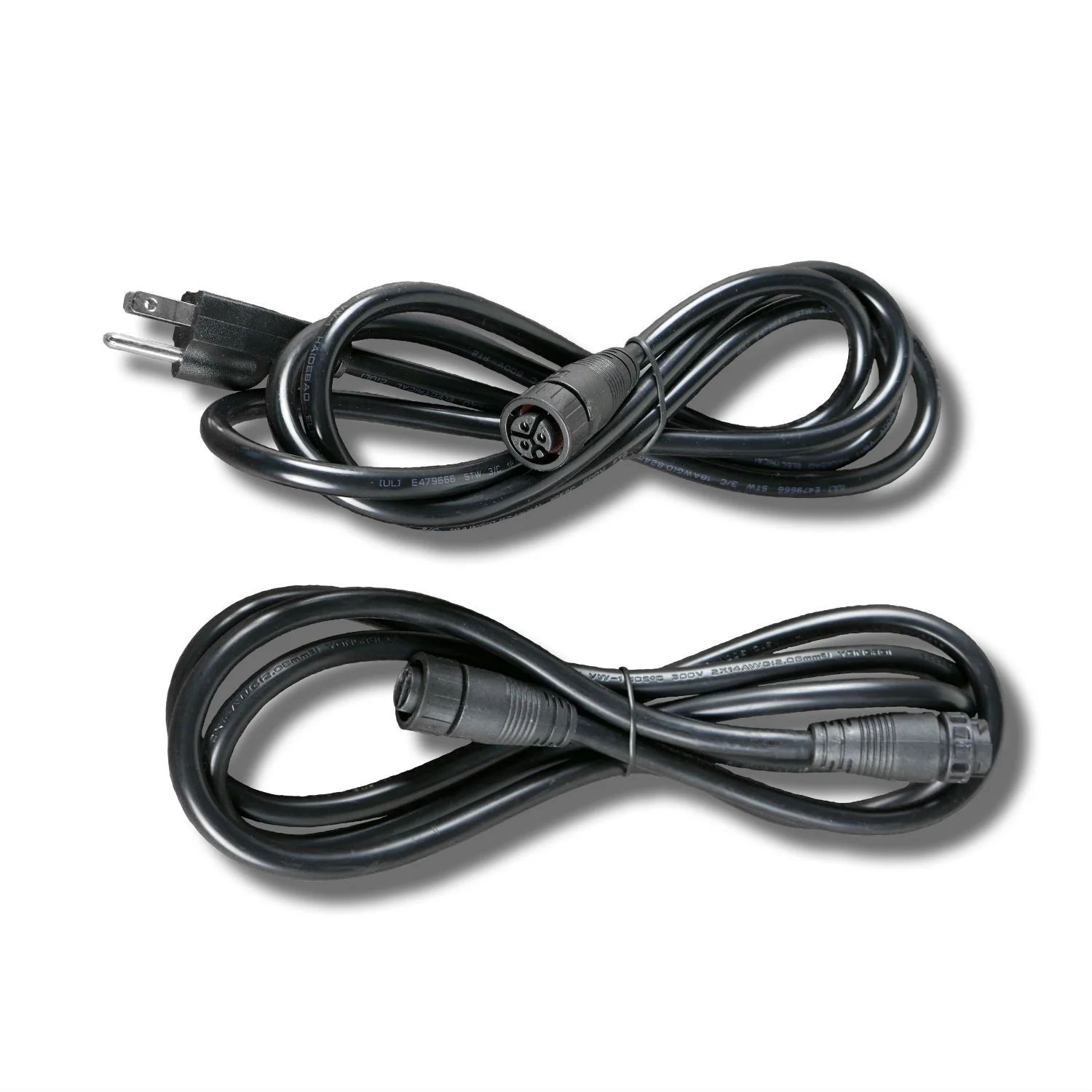

• 79” (2M) DC remote driver cable

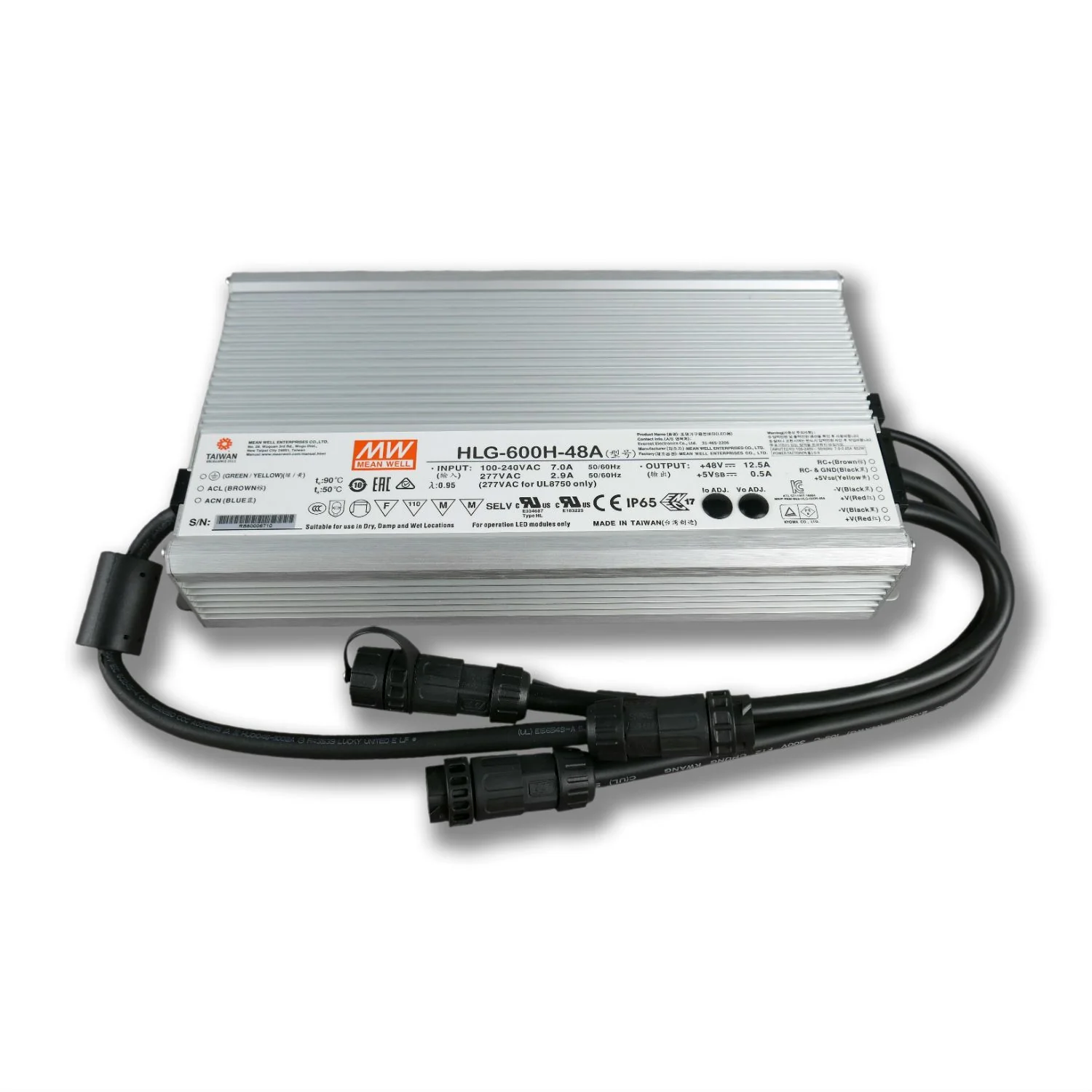

• Meanwell HLG-600 LED Driver
• 79” (2M) AC Power Cord

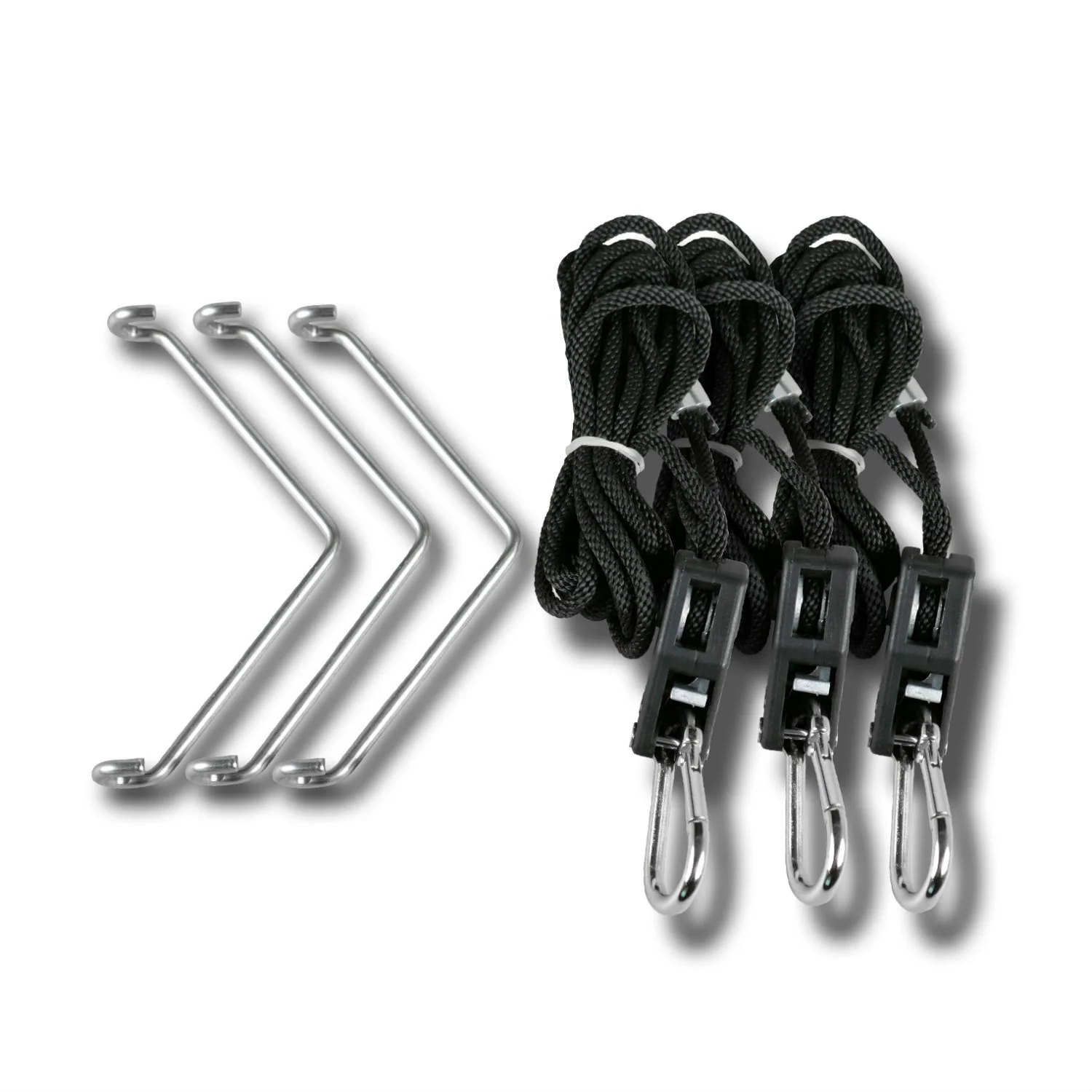

• SS hangers | Aluminum mechanism rope ratchets (x3)

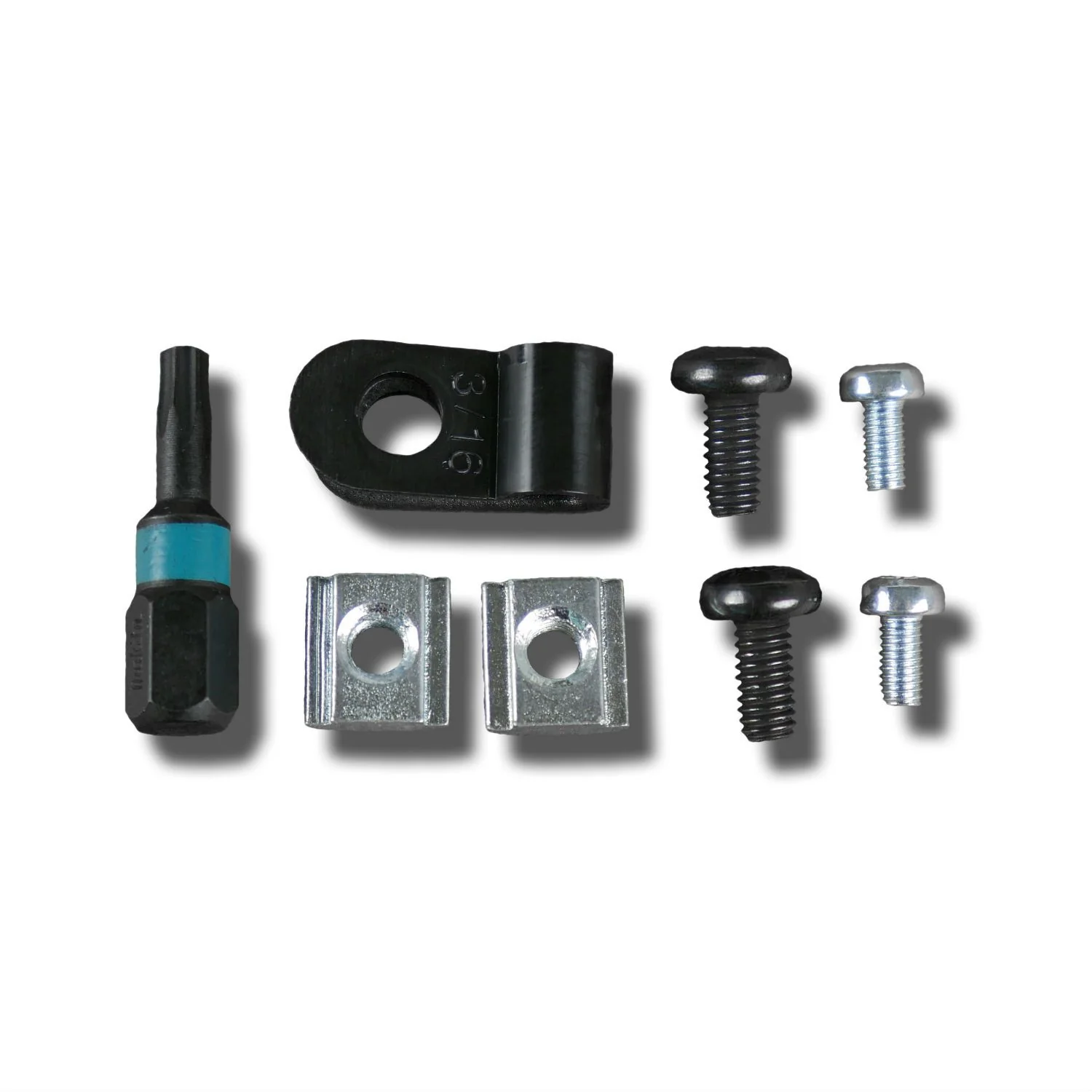

• Spare Fasteners + T15 torx bit

Recommended for:

• 4'x4' to 5'x5' Grow tents
• Grow rooms
• Large indoor grows
• Commercial grows
• Vegetative growth and/or flowering
• Full-cycle growing from seedling to flower
• Soil, hydroponic, aeroponic, or aquaponic systems
